Description
Flexible Customization

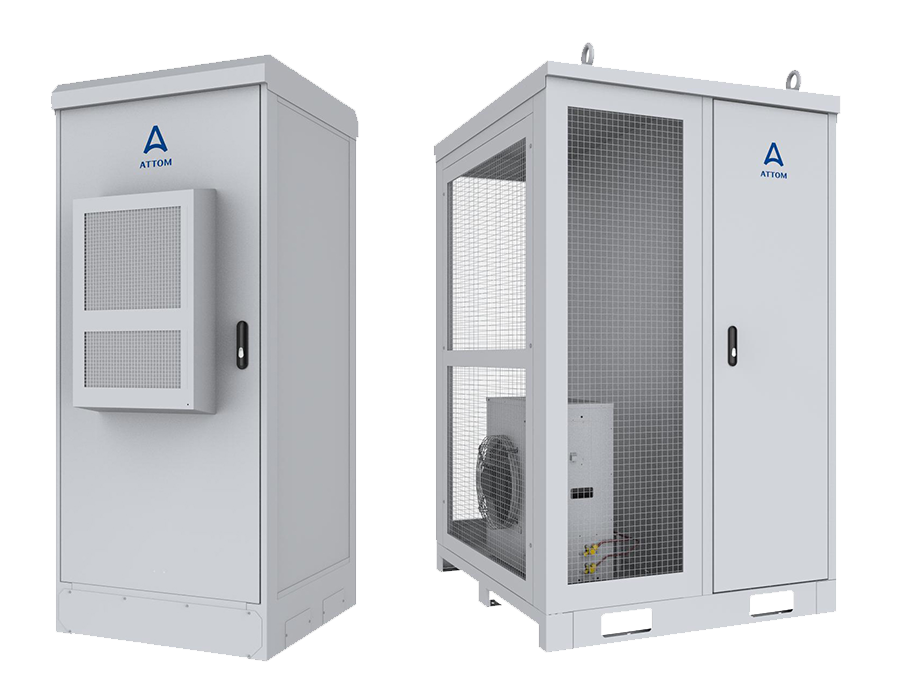

Scaling from 24U to 42U configurations, the enclosure architecture delivers an IP65-rated sealed environment to safeguard core hardware assets, seamlessly integrating intelligent access control and high-definition video surveillance matrices. This space-efficient, ruggedized outdoor enclosure is equipped with an integrated standard 19-inch mounting chassis, ensuring universal compatibility with diverse IT and network appliance deployments while natively accommodating a multi-source power framework that supports both high-capacity 48VDC rectifier matrices and industrial AC UPS topologies.
Sustainable Efficiency
The thermal architecture delivers optimized cooling efficiency by seamlessly integrating wall-mounted, rack-mounted, or InRow precision cooling systems. By implementing isolated hot and cold aisle containment, the configuration significantly mitigates thermal mixing to enhance overall energy utilization. This thermodynamic performance is further driven by high-efficiency industrial components, including variable-frequency inverter compressors, electronically commutated (EC) motorized fans, and eco-compatible green refrigerants, ensuring sustainable and high-density climate control.
Intelligent Management
The intelligent infrastructure management platform maintains pervasive telemetry across all critical operational matrices, fully interfacing with the enterprise access control system to deliver uninterrupted, real-time data streaming. To streamline operations, the architecture supports both localized and remote industrial monitoring protocols, establishing a foundation for seamless centralized management and high-availability, continuous environmental oversight.
Accelerated Deployment
Featuring heavy-duty ruggedized construction engineered to withstand extreme environmental parameters, this infrastructure is built for demanding applications ranging from industrial rooftops and expansive warehouses to offshore oil platforms and highly isolated remote installations. The fully integrated, all-in-one architecture leverages factory prefabrication and rigorous systematic pre-commissioning, allowing for rapid field deployment and localized provisioning across any geographic coordinates with zero upfront capital infrastructure investment.

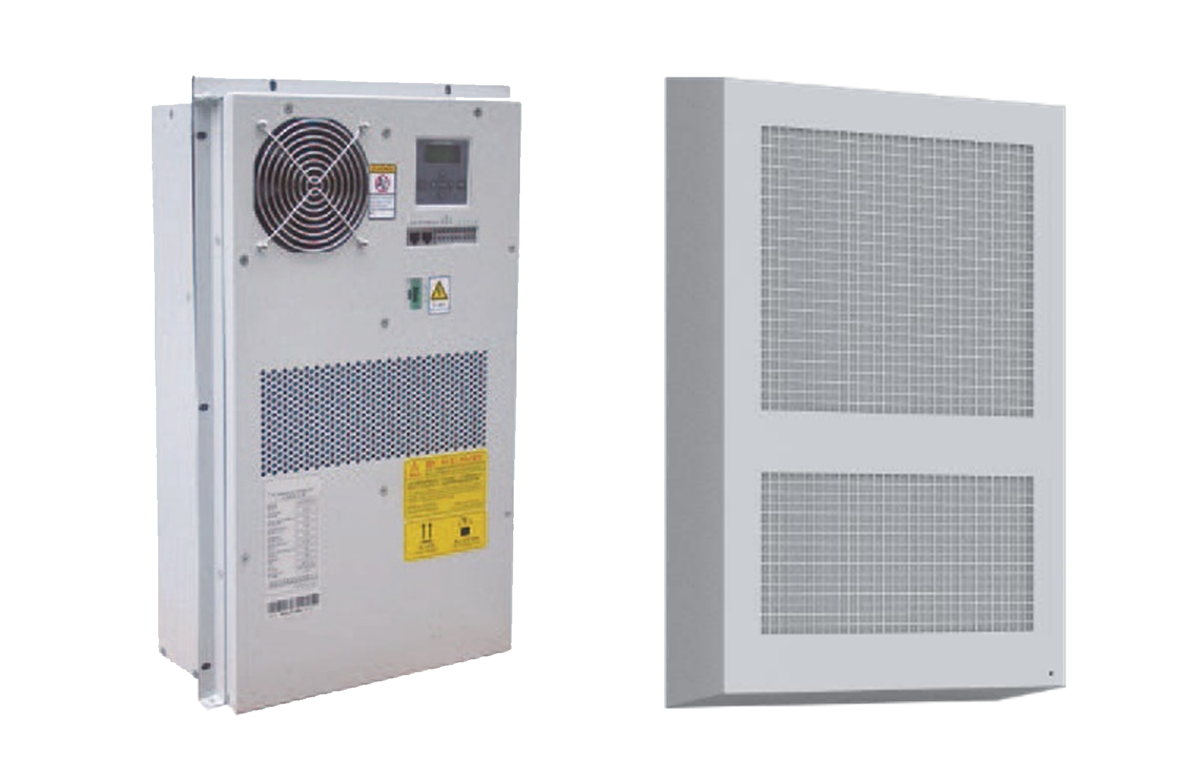

Dual-Source Thermal Management with Configurable Power Topologies
Engineered with dual-source compatibility, this high-efficiency thermal management architecture supports configurable power inputs of either 48VDC or 208-240VAC to accommodate diverse industrial grids. The compact, wall-mounted enclosure boasts an advanced ingress protection rating against heavy dust and water saturation, optimized to eliminate interior U-space consumption. Fabricated from heavy-gauge powder-coated sheet metal to withstand severe environmental degradation, the system utilizes eco-compatible green refrigerants with zero Ozone Depletion Potential (ODP) and features an advanced thermodynamic design capable of sustained operation in extreme thermal thresholds ranging from -40°C up to 55°C.
Adaptable Hybrid Power Architecture for Uncompromising Reliability
An ultra-hybrid DC/AC infrastructure combining optional UPS and inverter power modules supports equipment requiring both AC and DC inputs. It utilizes a unified, comprehensive battery system to optimize spatial efficiency and reduce capital expenditure. Flexible A/B power input modules streamline the support of diverse hybrid power sources. The rack-mounted EAC UPS system, available in 3KVA to 10KVA capacities, utilizes a standard 19-inch form factor to maximize available space for IT hardware. Equipped with high-performance Lithium or Lead-Acid batteries to ensure robust operational continuity. Supports advanced remote monitoring via the Modbus protocol, featuring secure access and automated dry contact alarm inputs/outputs.
Versatile Standardized Cabinets, Engineered for Diverse Industrial Applications.
The CubixOutpost solution provides a comprehensive portfolio of pre-engineered configurations, leveraging versatile options across critical sub-systems including cabinetry, climate control, power distribution, monitoring, access control, and fire suppression to precisely align with diverse industrial applications. Standard configurations include:

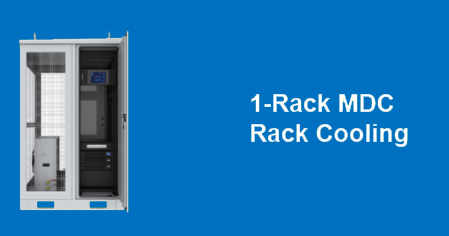

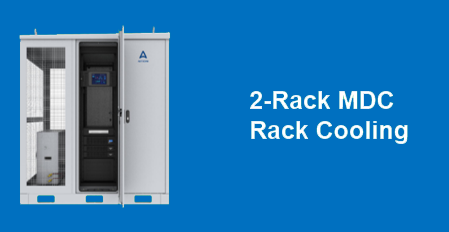

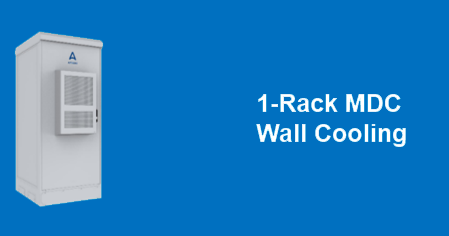

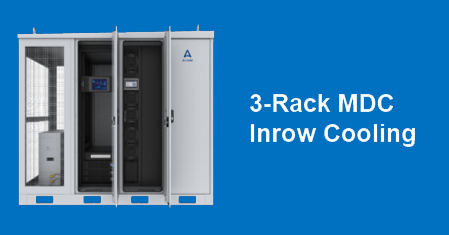

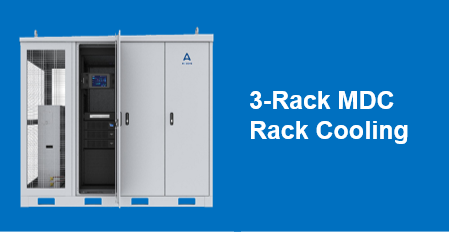

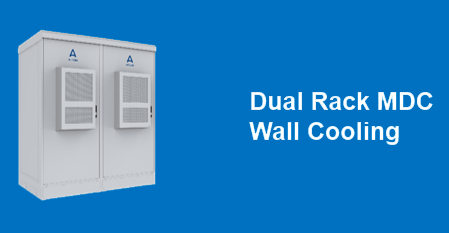

Precision Cooling System
Standard Wall-Mount with Full-Range Rack/In-Row Cooling Versatile cooling architecture adaptable to diverse industrial layout requirements. Built-in Smart Sensors with Web/SNMP/RS485 Telemetry Advanced integrated monitoring for robust, real-time remote environmental control. Industrial-Grade Resilience Up to Ambient Engineered for uninterrupted, high-efficiency operation in extreme thermal environments.
Rack System
Engineered to stringent IP55/IP65 protection standards across the top, cover, and entire enclosure, ensuring resilience in harsh industrial environments. Incorporates isolated cold and hot airflow management to maximize thermodynamic efficiency. Outfitted with sliding rails and drawers to streamline hardware access and maintenance procedures. Heavy-duty metal support brackets guarantee exceptional static load-bearing capabilities.

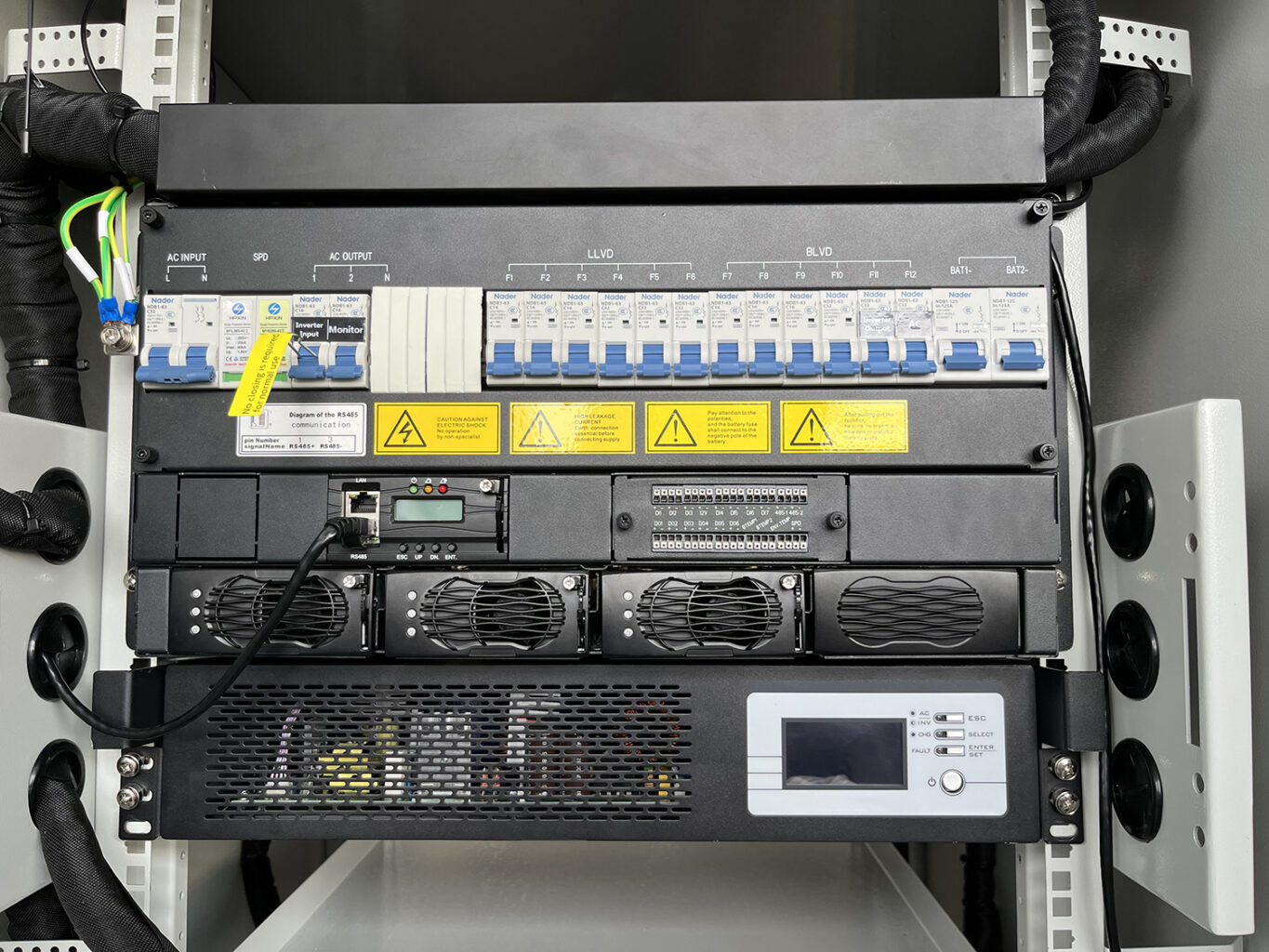

DC/AC Power System
Features a broad range of rack-mounted AC/DC Rectifiers and Modular UPS options. Supports flexible VRLA and Lithium battery configurations. Includes a specialized plug-and-play Lithium battery pack designed for UPS applications. Employs bi-directional PDU pin configurations. The integrated power distribution panel is compactly engineered to fit within a 19-inch 1U space constraint.
DCIM System
Establishes comprehensive telemetry with the UPS, cooling infrastructure, power panels, and all IT hardware. Fully integrated with the access control network. Utilizes a flexible indoor-mounted host unit that preserves critical U-space. Remotely accessible via web interfaces, SMS, Email, Modbus-TCP, with optional SNMP integration.
Access Control System
Deploys multifaceted authentication methods, including RFID, digital PIN, mechanical key override, and a remote access control application. Features a standalone indoor smart lock designed for space-efficient installation and seamless integration with the cooling rack section. Interoperates with the centralized access control system to streamline enterprise security management.
Fire Protection System
Utilizes a standard rack-mount design for seamless integration within the cabinet structure. Incorporates an early-warning fire detection network. Features an integrated smart compact panel or a standalone control module to simplify fire system operations and management. Deploys Novec 1230 or FM200 as the primary suppression agent.
