Description
One-Stop Solution

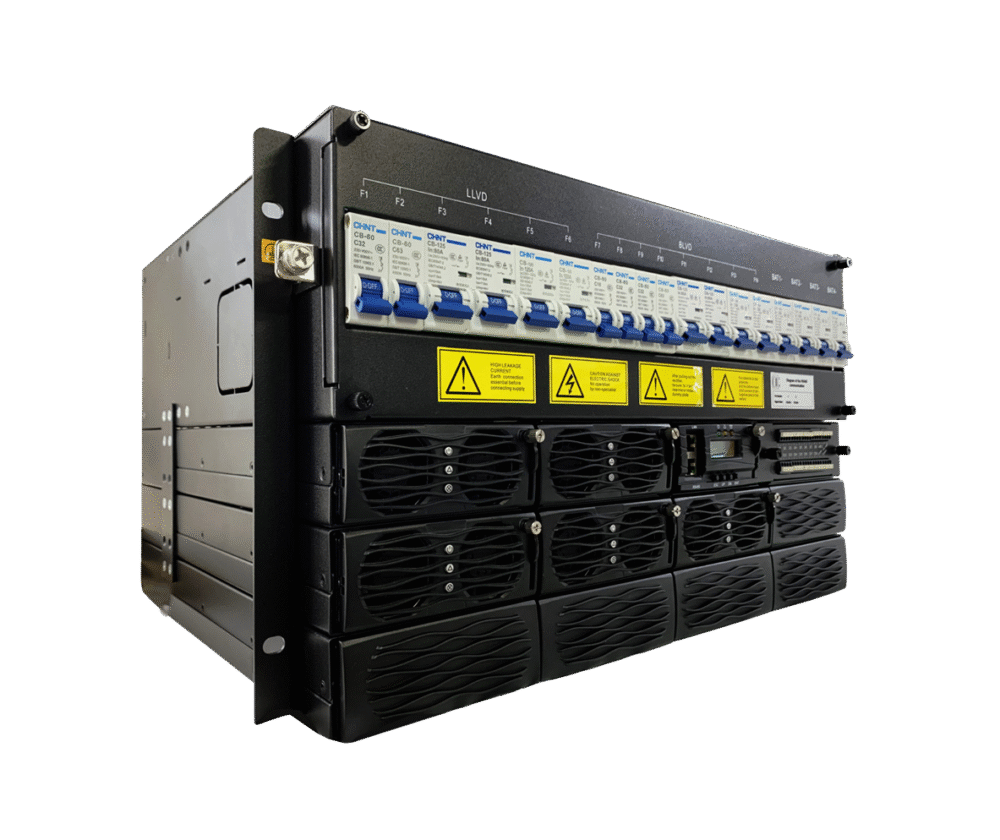

The 19-inch rack-mounted power frame seamlessly integrates into standard telecommunications cabinets. Utilizes hot-swap technology to facilitate rapid Plug-and-Play installation procedures. Engineered for full front-access operation and streamlined front-access maintenance. We provide comprehensive, end-to-end customized integration services.
High Compatibility
Fully compatible with 2-4kW rectifier modules and solar power modules. Features a broad input voltage range and exceptional adaptability to fluctuating grid conditions. Rated for sustained high-temperature operation up to 75°C.
Intelligent Control
Incorporates multi-channel serial ports, dry contacts, and network interface outputs to facilitate flexible networking architectures and comprehensive remote monitoring. The intelligent battery management system optimizes charging cycles to maximize operational battery life.
Intelligent Controller Module
- Manages multiple rectifier and/or solar module with one system.
- Actively equalizes rectifier runtimes to optimize the operational lifetime of critical components.
- The intelligent battery management system significantly extends overall battery longevity.
- Supports remote monitoring via multi-channel serial ports, dry contacts, and network interface outputs.
- Features comprehensive hybrid power management capabilities, seamlessly integrating DG, Lithium, and VRLA battery systems.

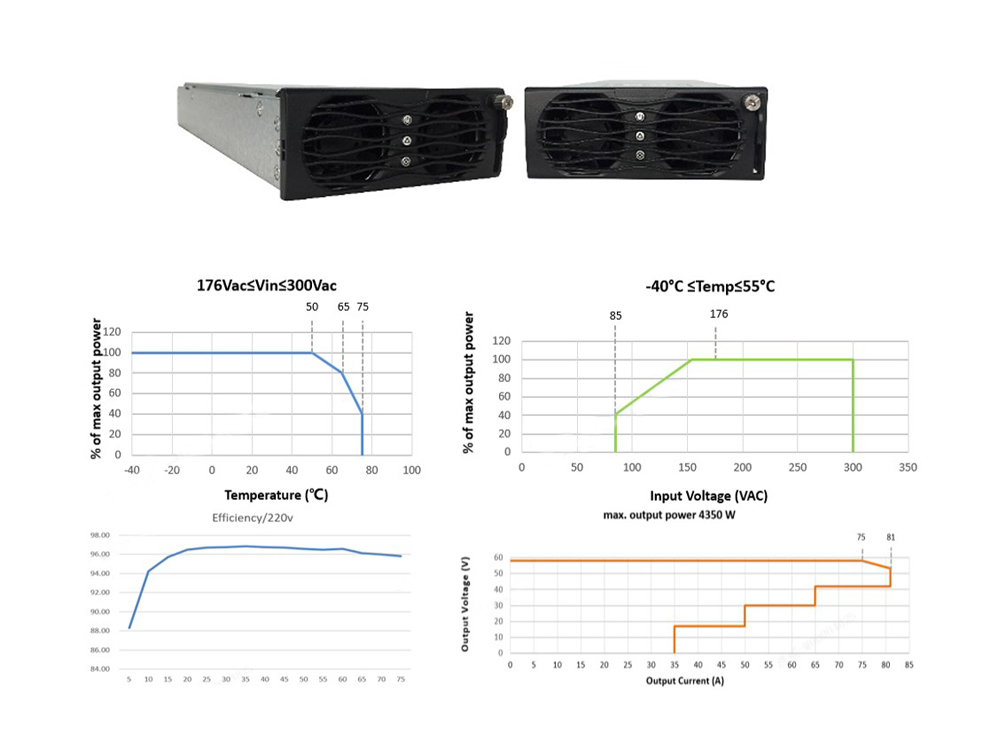

High Efficiency Rectifier Module
- The 19-inch rack-mounted power frame integrates easily into standard cabinetry.
- Compatible with 2kW,3kW, and4kW rectifier modules, achieving operational efficiencies up to 97%.
- Hot-swappable rectifier modules ensure simplified Plug-and-Play installation.
- The intelligent battery management system ensures extended operational longevity.
- Supports extensive remote monitoring through multi-channel serial ports, dry contacts, and network interface outputs.
- Incorporates a standard lightning protection design suitable for deployment in harsh environments.
- Rated for extreme high-temperature operation up to 75°C.

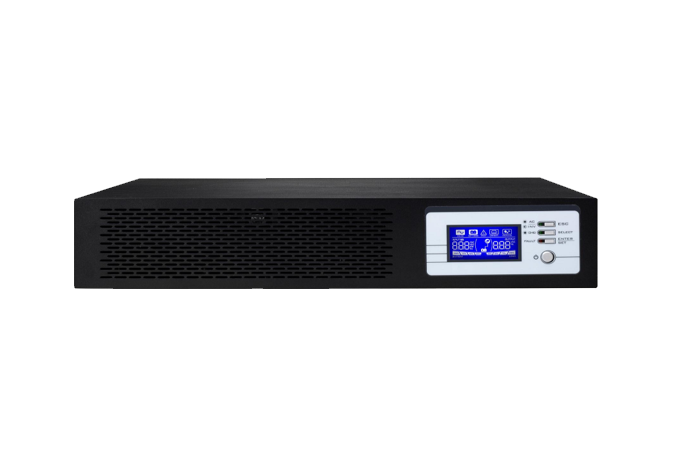

EPS Inverter Power System
- The EPS Inverter power system shares the backup battery infrastructure with the Rectifier, preserving critical IT space for the hybrid deployment of AC/DC equipment.
- Delivers a pure sine wave output.
- Features a built-in AC charger supporting up to 50A/60A.Provides selectable charging currents customized to specific application requirements.
- Enables precise parameter configuration via an integrated LCD interface.
- Fully compatible with both primary mains voltage and secondary generator power sources.
- Includes a cold start function and automatic restart capabilities upon the restoration of AC power.
- Equipped with robust overload and short circuit protection mechanisms.
- The smart battery charger design is optimized to enhance overall battery performance.
- Supports parallel operation configurations for up to 9 units.
- Optional MPPT or PWM solar charging capabilities are available.

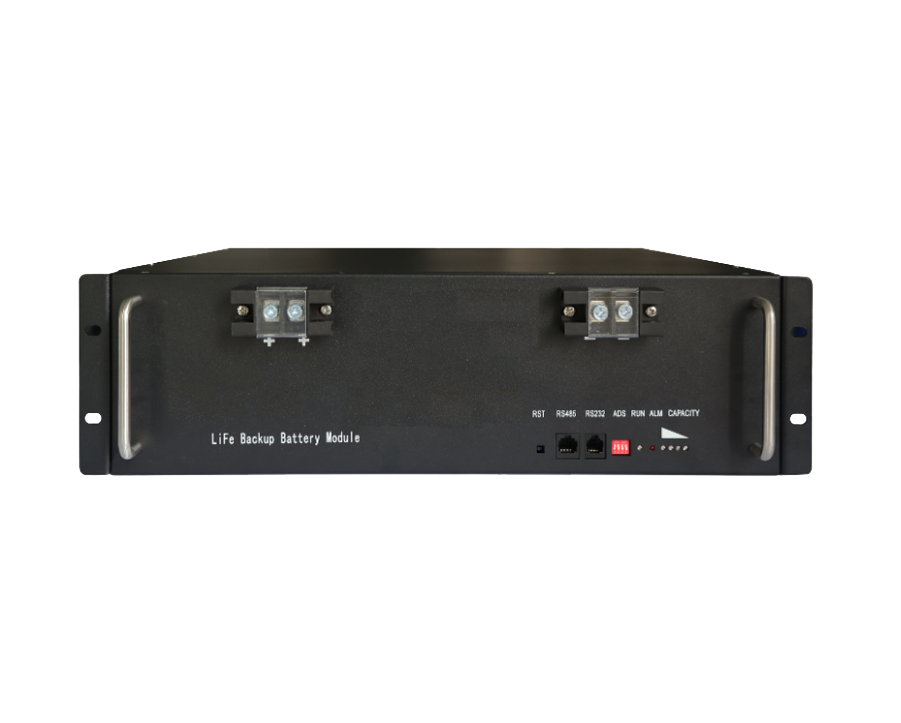

High Efficiency Lithium Battery
- Utilizes a high-performance lithium iron phosphate (LFP) battery chemistry, characterized by low weight, high temperature tolerance, and an extended operational lifecycle.
- Intelligent balance management protocols support both intra-module equalization and inter-module balancing.
- Maintains a State of Charge (SOC) accuracy≤5%.
- An optional LCD display provides real-time visualization of battery and BMS operational status.
- Supports direct communication with UPS systems via RS485/RS232 protocols and accommodates multi-channel trunk contacts.
